SCADA: Supervisory Control and Data Acquisition

What is SCADA, Who Uses it and How SCADA Has Evolved

7 minute read

SCADA Explained

Supervisory control and data acquisition (SCADA) is a system of software and hardware elements that allows organizations to control and monitor industrial processes by directly interfacing with plant-floor machinery and viewing real-time data.

Using a SCADA system, industrial organizations can:

  • Control industrial processes locally or at remote locations
  • Monitor, gather, and process real-time data
  • Directly interact with devices such as sensors, valves, pumps, motors, and more through human-machine interface (HMI) software
  • Record events into a log file

SCADA systems are crucial for industrial organizations since they help to maintain efficiency, process data for smarter decisions, and communicate system issues to help mitigate downtime.

The basic SCADA architecture begins with programmable logic controllers (PLCs) or remote terminal units (RTUs). PLCs and RTUs are microcomputers that communicate with an array of objects such as factory machines, HMIs, sensors, and end devices, and then route the information from those objects to computers with SCADA software. The SCADA software processes, distributes, and displays the data, helping operators and other employees analyze the data and make important decisions.

For example, the SCADA system quickly notifies an operator that a batch of product is showing a high incidence of errors. The operator pauses the operation and views the SCADA system data via an HMI to determine the cause of the issue. The operator reviews the data and discovers that Machine 4 was malfunctioning. The SCADA system’s ability to notify the operator of an issue helps him to resolve it and prevent further loss of product.

A Basic SCADA Diagram

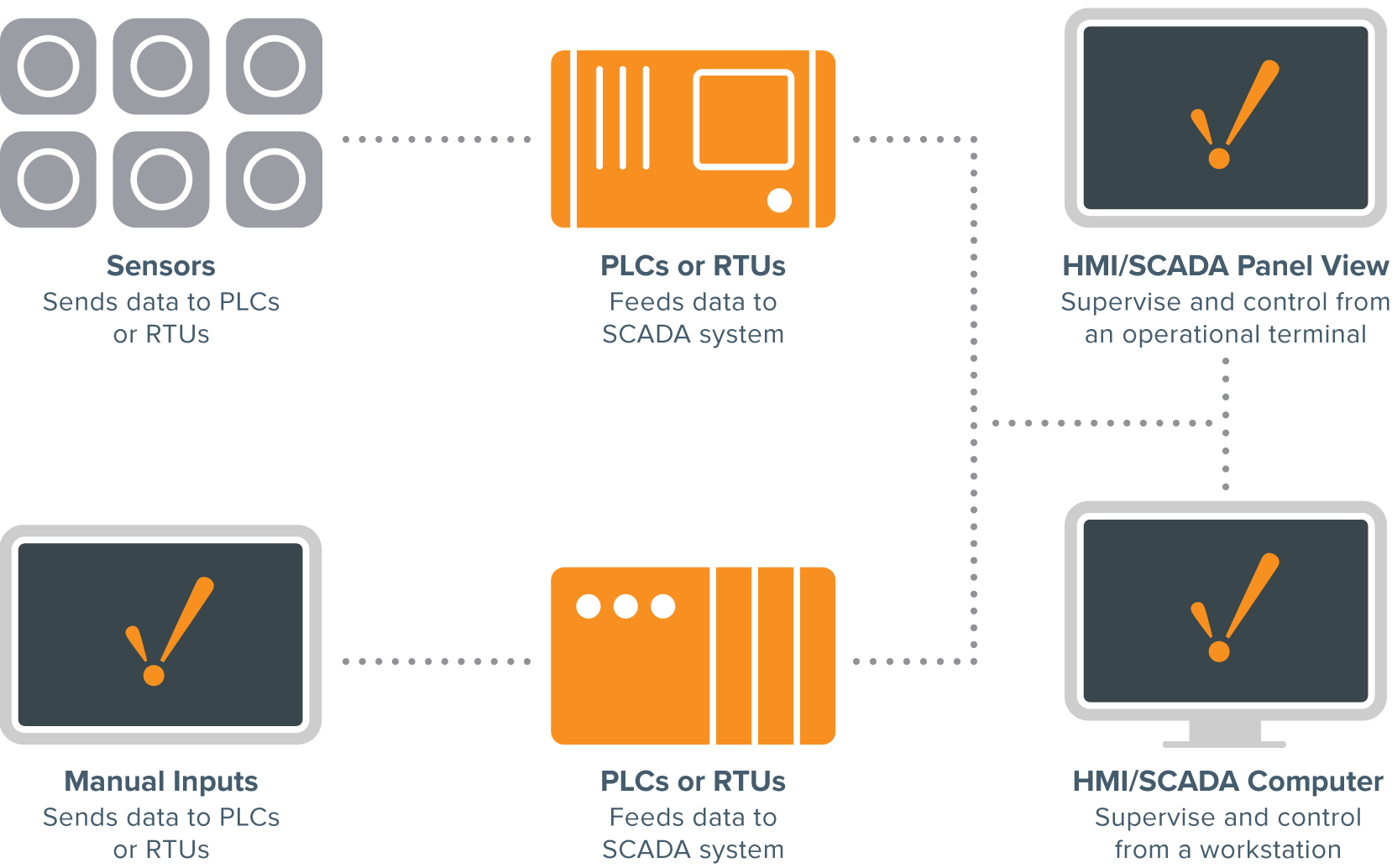

Basic SCADA Architecture
Basic SCADA Diagram

Who Uses SCADA?

SCADA systems are used by industrial organizations and companies in the public and private sectors to control and maintain efficiency, distribute data for smarter decisions, and communicate system issues to help mitigate downtime. SCADA systems work well in many different types of enterprises because they can range from simple configurations to large, complex installations. SCADA systems are the backbone of many modern industries, including:

  • Energy
  • Food and beverage
  • Manufacturing
  • Oil and gas
  • Power
  • Recycling
  • Transportation
  • Water and waste water
  • And many more

Virtually anywhere you look in today's world, there is some type of SCADA system running behind the scenes: maintaining the refrigeration systems at the local supermarket, ensuring production and safety at a refinery, achieving quality standards at a waste water treatment plant, or even tracking your energy use at home, to give a few examples.

Effective SCADA systems can result in significant savings of time and money. Numerous case studies have been published highlighting the benefits and savings of using a modern SCADA software solution such as Ignition.

The Birth of SCADA

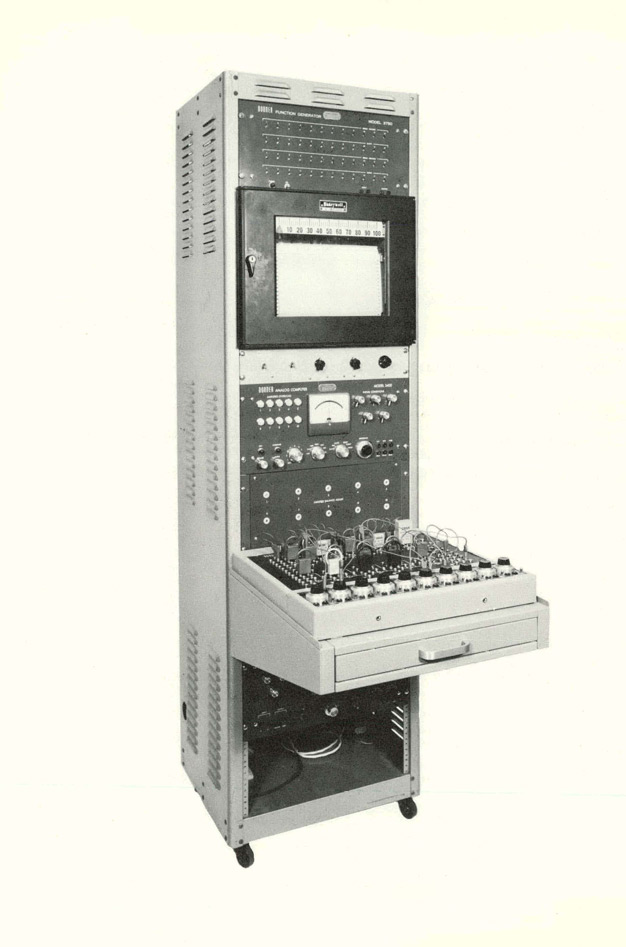

The Birth of SCADA
DOE’s Office of Scientific and Technical Information (OSTI), Office of Science [Public domain], via Wikimedia Commons

To understand the origins of SCADA, we must understand the problems industrial organizations are trying to solve. Before the concept of SCADA was introduced in the mid-20th century, many manufacturing floors, industrial plants, and remote sites relied on personnel to manually control and monitor equipment via push buttons and analog dials.

As industrial floors and remotes site began to scale out in size, solutions were needed to control equipment over long distances. Industrial organizations started to utilize relays and timers to provide some level of supervisory control without having to send people to remote locations to interact with each device.

While relays and timers solved many problems by providing limited automation functionality, more issues began to arise as organizations continued to scale out. Relays and timers were difficult to reconfigure, fault-find and the control panels took up racks upon racks of space. A more efficient and fully automated system of control and monitoring was needed.

In the early 1950s, computers were first developed and used for industrial control purposes. Supervisory control began to become popular among the major utilities, oil and gas pipelines, and other industrial markets at that time. In the 1960s, telemetry was established for monitoring, which allowed for automated communications to transmit measurements and other data from remotes sites to monitoring equipment. The term “SCADA” was coined in the early 1970s, and the rise of microprocessors and PLCs during that decade increased enterprises’ ability to monitor and control automated processes more than ever before.

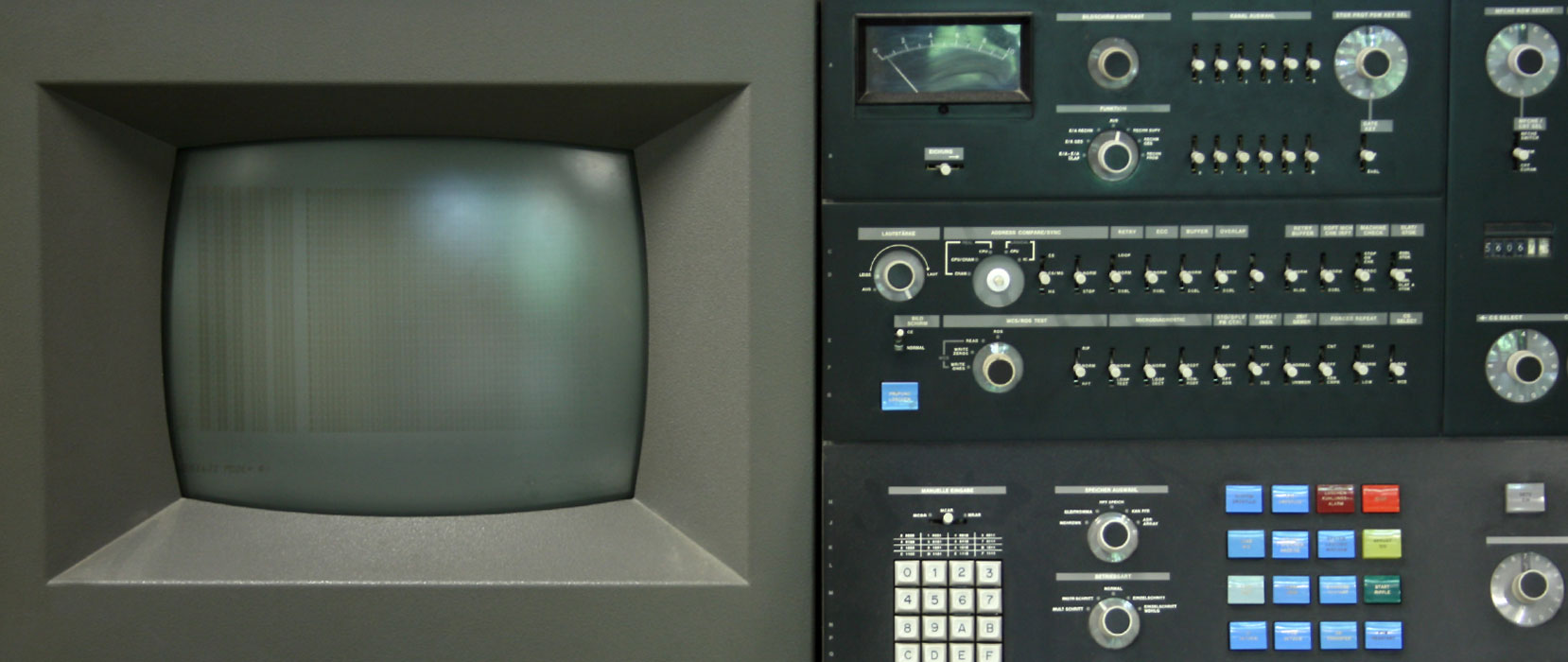

An old mainframe computer used for SCADA

The Evolution of SCADA

The first iteration of SCADA started off with mainframe computers. Networks as we know them today were not available and each SCADA system stood on its own. These systems were what would now be referred to as monolithic SCADA systems.

In the 80s and 90s, SCADA continued to evolve thanks to smaller computer systems, Local Area Networking (LAN) technology, and PC-based HMI software. SCADA systems soon were able to be connected to other similar systems. Many of the LAN protocols used in these systems were proprietary, which gave vendors control of how to optimize data transfer. Unfortunately, these systems were incapable of communicating with systems from other vendors. These systems were called distributed SCADA systems.

In the 1990s and early 2000s, building upon the distributed system model, SCADA adopted an incremental change by embracing an open system architecture and communications protocols that were not vendor-specific. This iteration of SCADA, called a networked SCADA system, took advantage of communications technologies such as Ethernet. Networked SCADA systems allowed systems from other vendors to communicate with each other, alleviating the limitations imposed by older SCADA systems, and allowed organizations to connect more devices to the network.

While SCADA systems have undergone substantial evolutionary changes, many industrial organizations continued to struggle with industrial data access from the enterprise level. By the late 1990s to the early 2000s, a technological boom occurred and personal computing and IT technologies accelerated in development. Structured query language (SQL) databases became the standard for IT databases but were not adopted by SCADA developers. This resulted in a rift between the fields of controls and IT, and SCADA technology became antiquated over time.

Traditional SCADA systems still use proprietary technology to handle data. Whether it is a data historian, a data connector, or other means of data transfer, the solution is messy and incredibly expensive. Modern SCADA systems aim to solve this problem by leveraging the best of controls and IT technology.

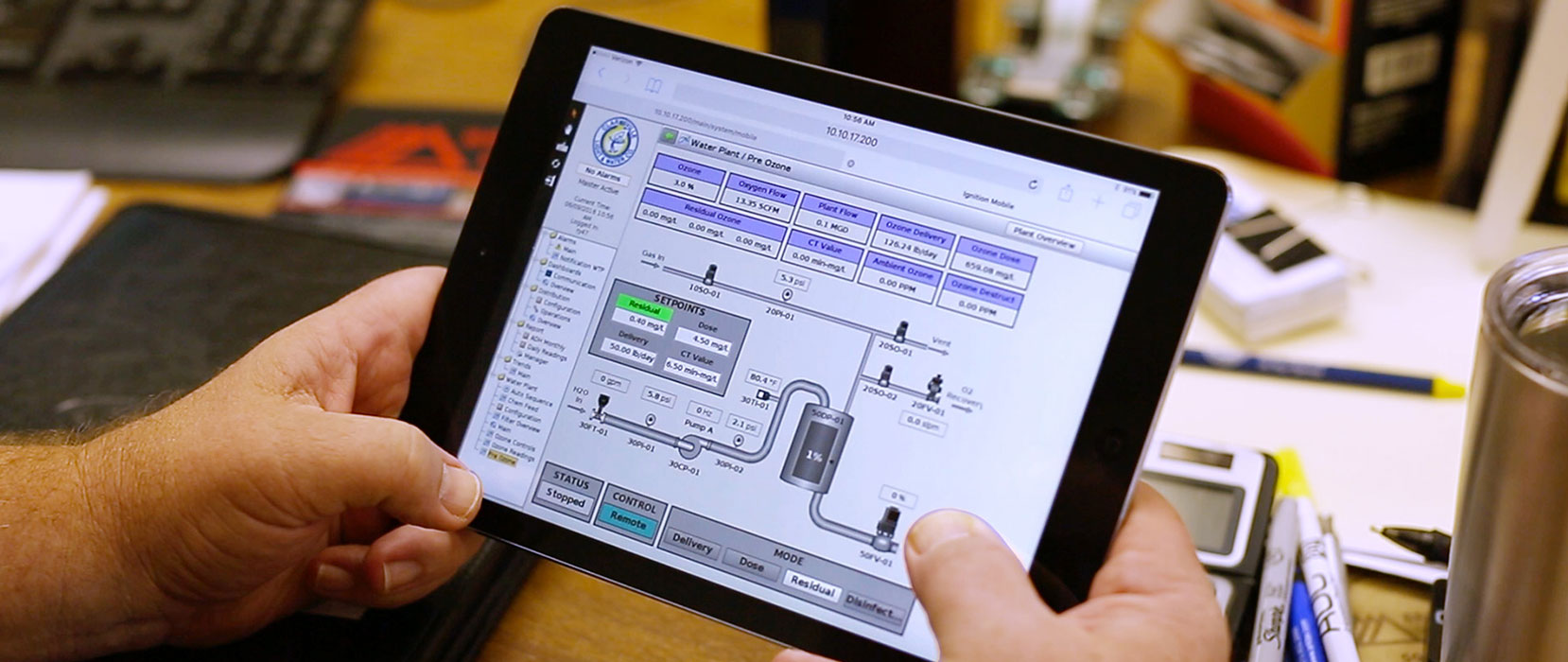

A handheld device with SCADA screen

Modern SCADA Systems

Modern SCADA systems allow real-time data from the plant floor to be accessed from anywhere in the world. This access to real-time information allows governments, businesses, and individuals to make data-driven decisions about how to improve their processes. Without SCADA software, it would be extremely difficult if not impossible to gather sufficient data for consistently well-informed decisions.

Also, most modern SCADA designer applications have rapid application development (RAD) capabilities that allow users to design applications relatively easily, even if they don't have extensive knowledge of software development.

The introduction of modern IT standards and practices such as SQL and web-based applications into SCADA software has greatly improved the efficiency, security, productivity, and reliability of SCADA systems.

SCADA software that utilizes the power of SQL databases provides huge advantages over antiquated SCADA software. One big advantage of using SQL databases with a SCADA system is that it makes it easier to integrate into existing MES and ERP systems, allowing data to flow seamlessly through an entire organization.

Historical data from a SCADA system can also be logged in a SQL database, which allows for easier data analysis through data trending.

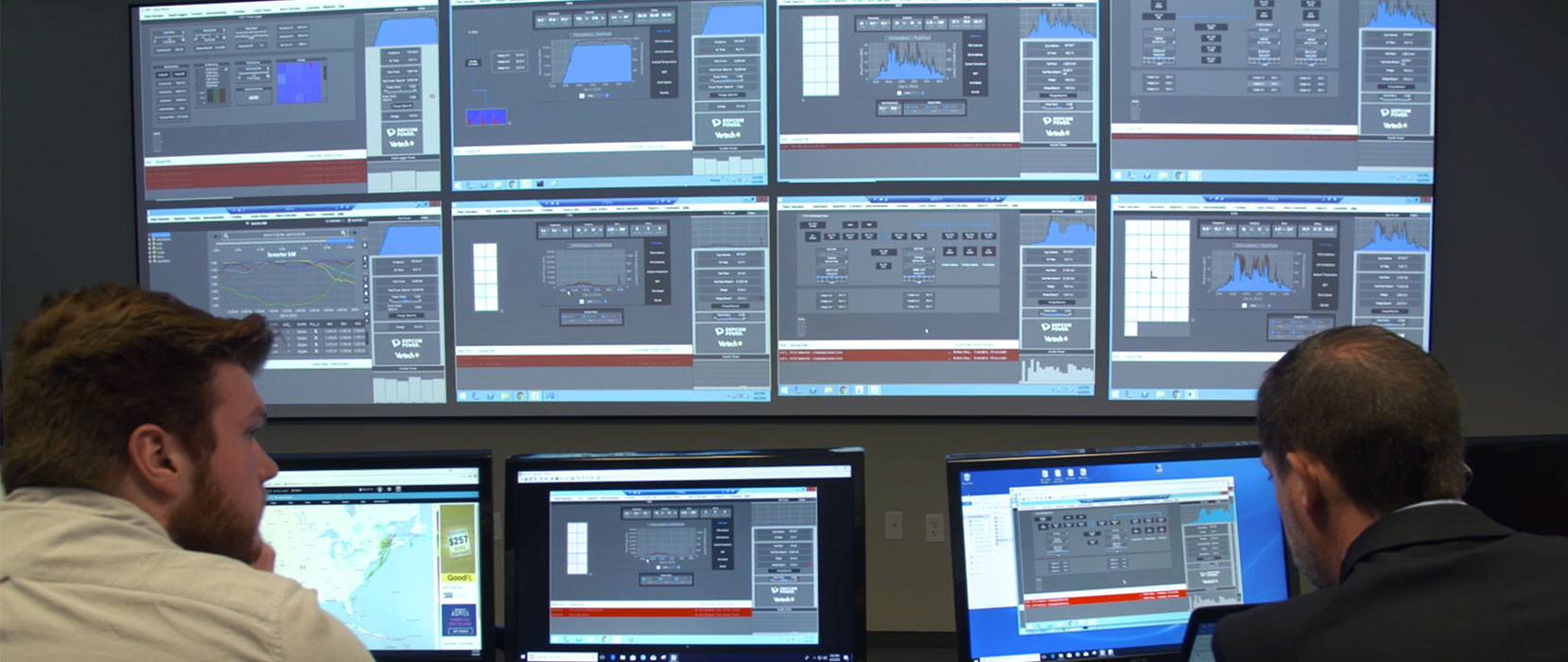

Multiple SCADA screens being monitored

Learn About Ignition: The New SCADA®

Ignition HMI/SCADA Software

Ignition by Inductive Automation® is an industrial automation software platform that many businesses and organizations have switched to for their HMI/SCADA needs.

Ignition has been installed in thousands of locations in over 100 countries since 2010. Its powerful and robust nature allows SCADA system integrators to reach the demands of their customers while costing less than other SCADA software solutions.

Here are a few reasons why more enterprises are choosing Ignition:

  • Ignition uses modern IT practices that make it compatible with current SCADA system components.
  • Its unique licensing model lets users pay a flat fee based on the number of servers. Other SCADA vendors typically charge per client or per tag, but Ignition offers unlimited clients and tags.
  • Ignition is web-deployable: it can be downloaded and installed in a few minutes, and clients can be launched or updated instantly.

Inductive Automation's motto of "Dream It, Do It" is a perfect embodiment of what Ignition can do. While its bold claims may sound too good to be true, one demonstration of the software proves how powerful it really is. Once you see what's possible, you’ll begin to imagine how the software can fit your SCADA needs and open up new possibilities.

Ignition SCADA Architecture

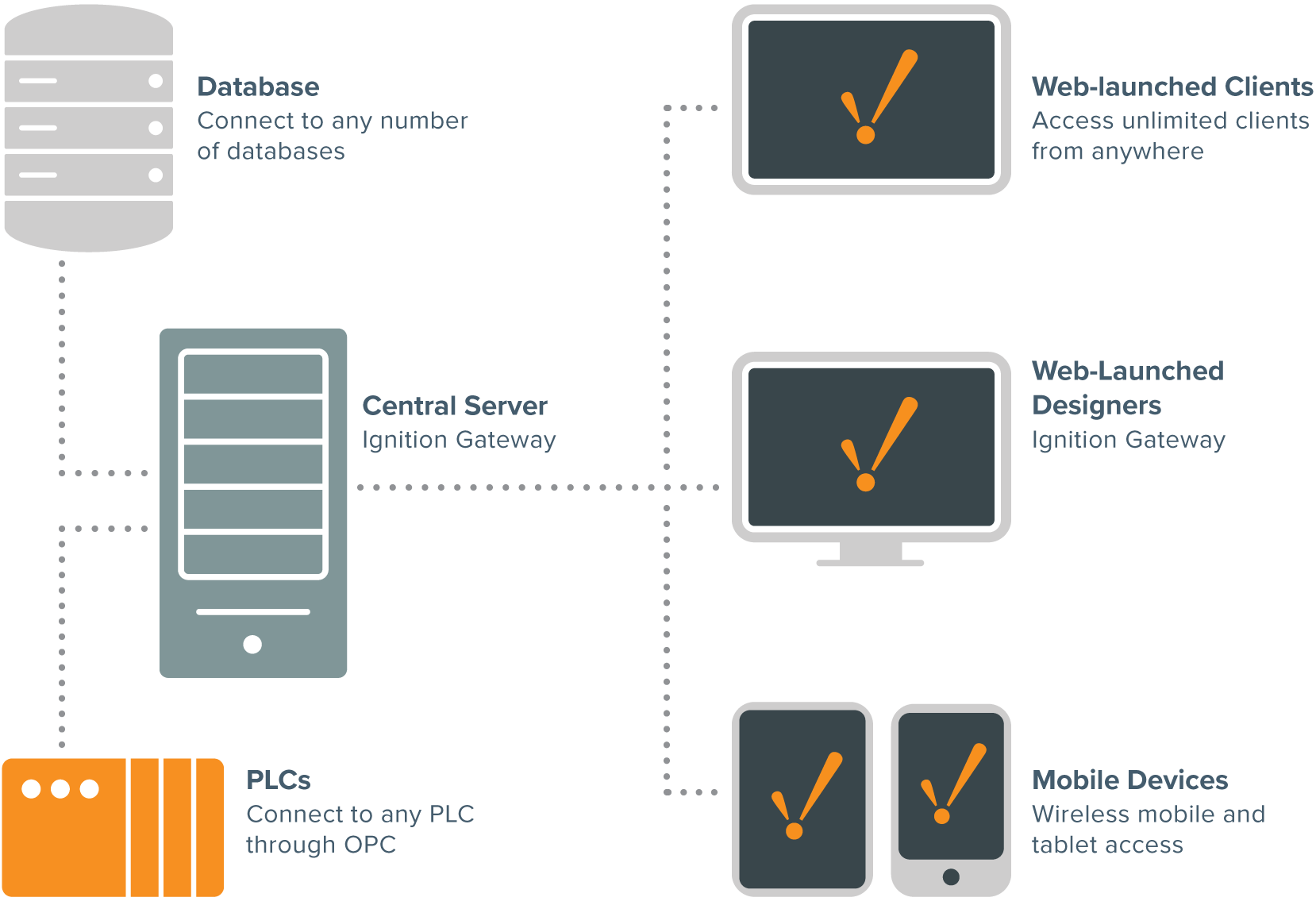

Graphic: Ignition HMI/SCADA Architecture

Try Ignition for yourself for free and visit Inductive University to master the platform at your own pace.
